LSK WIDE series -discontined-
LSK WIDE-CF
The LSK WIDE series has been discontinued.
The successor to LSK WIDE-CF is MGL-CF.
■Product features

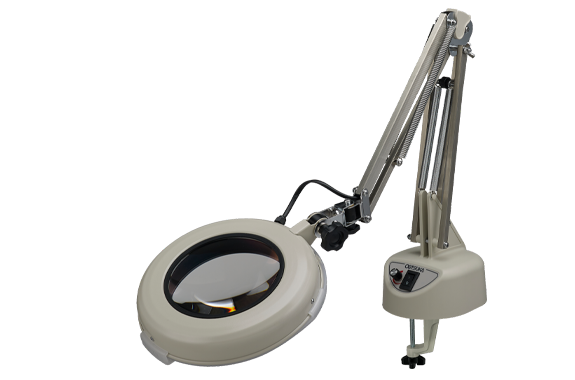

LSK WIDE-CF is an arm-type illuminated magnifier that can be clamped to workbenches.
150φ large aperture lens with AR (anti-reflection) coating as standard.
The arm can be moved and stopped in any position thanks to the springs, making the working space bigger, and in addition, it can be used in environments with limited space for installation.
The light source features a chip-on-board LED and has the same luminous intensity distribution as a 30W fluorescent light tube thanks to its flat diffusion cover.
Continuous dimming from 100% to 50%
■Product Name
LED illuminated magnifier
■Model
LSK WIDE-CF (Compact free arm illuminated magnifier)
■Product Specifications
| Lens | |
|---|---|
| Magnification Lineup | AR WIDE 2x, AR WIDE 3x, AR WIDE 4x ( anti-reflection coating ) |
| Lighting | |
| Light source | High color rendering white LED （Ra≧90）+ diffusion cover |
| Input voltage | 100～240V, 50/60Hz, plug type A * It is possible to use up to 125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your dealer. |
| Power consumption | 11W |
| Adjustable Lighting | Available/100 ～ 50% |
| Body | |
| Weight (Kg) | 2.6 (Body weight without lens) |
| Arm Length (mm) | 680 |
| Head Dimensions (mm) | ɸ263 |
| Clamp Range (mm) | 15～60 |
| Operating Temperature Range | 5℃～35℃ |
| Dustproof and waterproof protection grade | IP20 (Indoor use only) |
