LSK WIDE series -discontined-

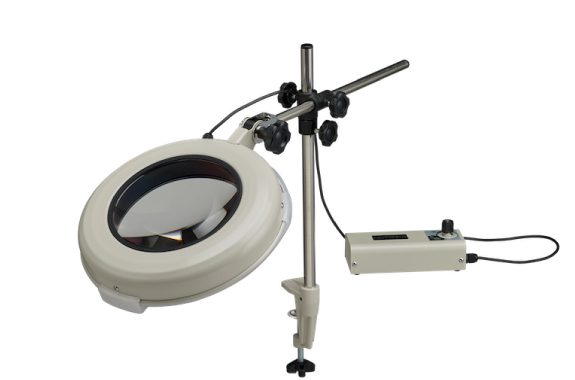

LSK WIDE-ST
The LSK WIDE series has been discontinued.
The successor to LSK WIDE-ST is MGL-ST.
■Product features
this is a product that can be fixed to a desk using a clamp
150φ large aperture lens with AR (anti-reflection) coating as standard.
The light source features a chip-on-board LED and has the same luminous intensity distribution
as a 30W fluorescent light tube thanks to its flat diffusion co
Continuous dimming between 100% and 50%.
■Product Name
LED illuminated magnifier
■Model
LSK WIDE-ST型（ong bar type）
■Product Specifications
| Lens | |
|---|---|
| Magnification Lineup | AR WIDE 2x, AR WIDE 3x, AR WIDE 4x ( anti-reflection coating ) |
| Lighting | |
| Light source | High color rendering white LED （Ra≧90）+ diffusion cover |
| Input voltage | 100～240V, 50/60Hz, plug type A * It is possible to use up to 125 ～ 240V by changing the cord with attached AC plug. For more information, please contact your dealer. |
| Power consumption | 11W |
| continuous dimming | Available/100 ～ 50% |
| Body | |
| Weight(Kg) | 1.9 (Body weight without lens) |
| Total Height(mm) | 345 |
| Head Dimensions(mm) | Φ263 |
| Vertical Post/Horizontal Bar
(Diameter/mm) |
Φ16/Φ13 |
| （mm) | 160×65×44(PS15C) |
| Operating Temperature Range | 5℃ ～ 35℃ |
| Dustproof and waterproof protection grade | IP20 (Indoor use only) |
