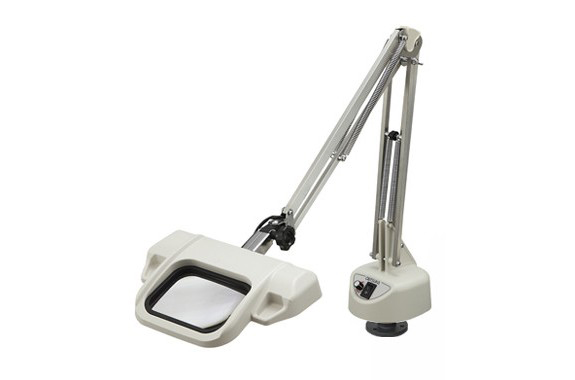

OLIGHT3-FD (fluorescent lamp)

■Product features
This product uses a compact fluorescent tube, ensuring sufficient lighting despite its small size. The lighting system uses an inverter circuit board, suppressing the “flicker” characteristic of fluorescent lighting.
The oblong lens has had the warping at the outer edges cut and can support long hours of work. Using the optional anti-reflection lens, “AR Coat,” suppresses lens reflection and increases optical transparency, reducing burden and fatigue during work.
In addition, the FD type is an arm-type illuminated magnifier equipped with a flange base that can be fixed to a table with screws, making it suitable for environments in which the product cannot be fixed with a clamp (such as when it is against the wall).

■Product Name
LED illuminated magnifier

■Model
OLIGHT3-FD (Desk holder fixed type free arm illuminated magnifier)

Attention :Only 100V, 50/60 Hz, plug type A

■Product Specifications

Lens spec
Magnification Lineup 2x, 3.5x, 2x AR, 3.5x AR
Anti-reflection Coating Lens Lineup Available/2x, 3.5x
Illumination
Light source 27W compact fluorescent tube (FPL-27AX)
Input voltage 100V, 50/60 Hz, plug type A
Power Consumption 24W
Adjustable Lighting None
Body

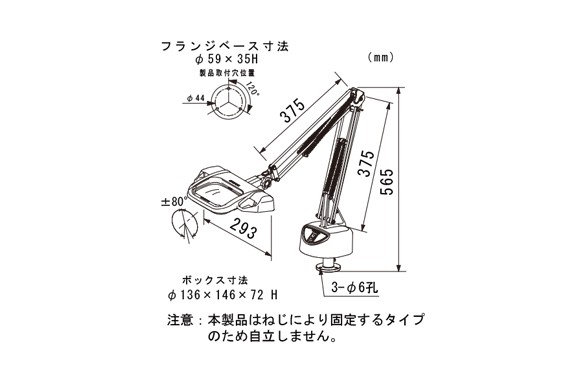

Weight (kg) Approx. 2.4 kg (Body weight without lens)
Arm length (mm) Approx. 850 (Distance from clamp to lens)
Head Dimensions (mm) 293 × 205
Operating temperature range 5°C – 40°C
Dustproof/Waterproof Grade IP20 (Indoor use only)
