OLIGHT5 series

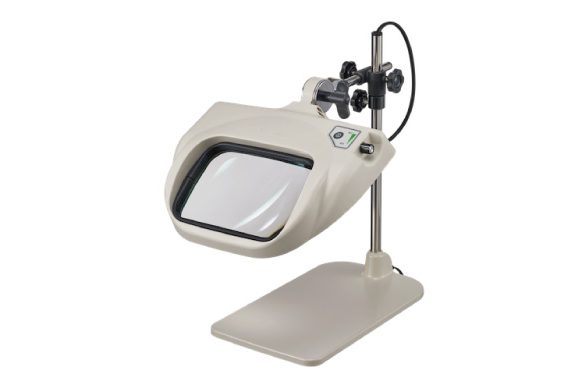

OLIGHT5-B
■Product Features
The OLIGHT5-B model is a self-supporting desktop product.
The lens has been enlarged by 150% to compare with OLIGHT3.
Continuous dimming has been greatly expanded from 100% to 10%.
The AR coating is standardized to alleviate eye fatigue even over long periods of use.
The square shape of the lens cuts down on the distortion around the periphery of the lens that occurs with round lenses, making it possible to work for long periods of time.
The ON/OFF switch is located in the head for improved operability.
Newly-designed clamps are compact and do not interfere with the work space, considering the strength and workability.
An AC adapter is used for power supply.
■Product Name
LED Illuminated Magnifier
■Model Name
OLIGHT5-B (Table Stand Type Illuminated Magnifier)
■Product Specifications
| Lens spec | |
|---|---|
| Magnification | 2xAR |
| Lens Dimension (mm) | 180×120 |
| Lens Material | Optical glass |
| working distance (mm) | 160 |
| Lens system | BIG-Recta-system－lens |
| AR Coating options | standard equipment |
| Illumination | |
| Light Source | LED lighting panel |
| Power Supply Voltage | 100-240V, 50/60Hz, Type A plugs *Usable with 125-240V power via replacement of AC cord with plug. Please inquire with the retail point of sale for details. |
| Power Consumption | 9W |
| Dimmer Function | Yes – Dimmer range of 100％-10% |
| Body | |
| Product weight | Oapprox 2.2kg (Without lens and AC adapter/body weight) |
| Height (mm) | 391 |
| Vertical /Horizontal Bar (diameter / mm) | Φ16/Φ13 |
| Table dimensions (mm) | 320×188 |
